Low Pressure Misting System - Diaphragm pump

The Low Pressure Misting System powered by a 150 PSI diaphragm pump is engineered for versatile, energy-efficient cooling and misting. Whether you’re managing dust in industrial zones or cultivating lush balcony gardens, this system offers a cost-effective, eco-friendly solution.

Applications

Dust suppression misting system

Dust suppression

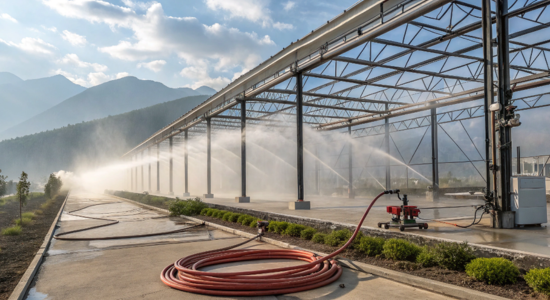

Dust suppression in warehouses, workshops, and construction sites

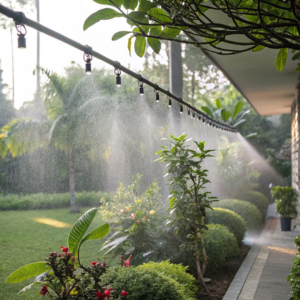

Terrace and balcony gardening

Terrace and balcony gardening, especially for tropical plants requiring high humidity

Misting System for Terrace and Bolconey
Indoor High Pressure Misting System

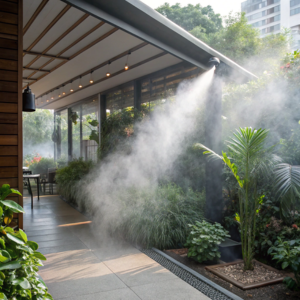

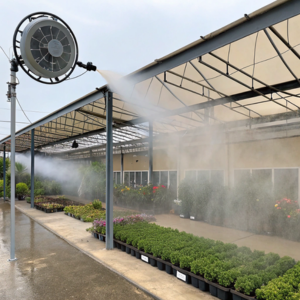

Indoor/outdoor cooling

  • Porticos
  • Patios
  • Gazebos
  • Open cafes and outdoor dining areas

Installation & Usage Guidelines

Pump Positioning

Install below the water tank level to allow gravity-fed suction, which improves pump efficiency and prolongs lifespan.

Water Quality

9

Use filtered or sediment-free water.

9

Impurities can clog the nozzles and reduce mist quality, causing uneven spray and system strain.

Pressure Management

9

The system operates at high pressure to atomize water into fine mist.

9

Adjust pressure by controlling the liquid return line.

9

Keep a portion of water constantly flowing back to the tank to prevent pump strain.

9

Do not close the return line completely – this will cause overheating and potential pump failure.

Sealing & Setup

9

Use Teflon tape generously on all threaded joints to prevent leaks.

9

Employ a professional plumber for initial setup, especially in complex or commercial applications.

Maintenance Tips

A

Monthly cleaning of nozzles and filters ensures consistent performance.

A

Remove and soak nozzles in vinegar or a descaling solution if mineral buildup is observed.

A

Periodically flush the system with clean water to clear out debris and algae.

System Components

9

16 meters of PU hose for flexible installation across varied layouts.

9

Nozzles are designed to be mounted at 45° angles, optimizing mist coverage and air cooling efficiency.

9

Plastic cable ties or clips are recommended for securing the mist line to poles, beams, or trellis structures.

Compatible Nozzles

These nozzle types are commonly compatible and effective with low-pressure misting systems:

Activated Carbon Filters<br />

Flat-fan

Even, wide coverage

Coalescing Filters<br />

Flood

High volume, large droplets

Water Softener for Bathroom<br />

Raindrop

Simulates natural rainfall for delicate plants

Activated Carbon Filters<br />

Hollow-cone

Circular spray, ideal for coverage of round areas

Coalescing Filters<br />

Full-cone

Dense mist, ideal for cooling

Water Softener for Bathroom<br />

Extended range nozzles

Suitable for larger areas or elevated mounts

Pump Specifications

A

Pump Type: Diaphragm

A

Operating Pressure: Up to 150 PSI

A

Flow Rate: Varies by model (usually 2.0–4.5 LPM)

A

Power Supply: Typically 12V DC or 220V AC based on setup

A

Materials: Corrosion-resistant body and seals for outdoor durability

Environmental Benefits

Water Softeners for Hair and Skin

Water-efficient

Uses less water compared to traditional sprinklers or cooling fans

Electric Water Softeners

Energy-efficient

Low power consumption with high cooling output

Commercial Water Softener Systems

Eco-friendly

No need for chemicals or refrigerants
