Misting System Pump
Industrial and commercial misting systems live or die by the quality of the pump.
- Manufactured in Ambattur, Chennai
- Sized to your site and water
- Installation and service support
Why Pressure Matters in Misting
Droplet Size
Higher pressure means smaller droplets (10–30 µm) that evaporate faster and cool more efficiently.
Coverage & Drift
Correct pressure minimises wetting of nearby surfaces while maximising reach.
Pump Longevity
Over or under specification leads to cavitation, seal wear and energy loss.
Brand Portfolio (Alphabetical)
CAT Pumps®
Stainless steel triplex plunger pumps renowned for 8,000 hour seal life.
Annovi Reverberi (AR)
Italian direct drive favourites with integrated thermal relief valves.
HAWK Pumps®
Rugged brass manifolds; ideal for harsh water conditions.
Riggers Pumps
Cost effective belt drive solutions assembled in India for quick spares.

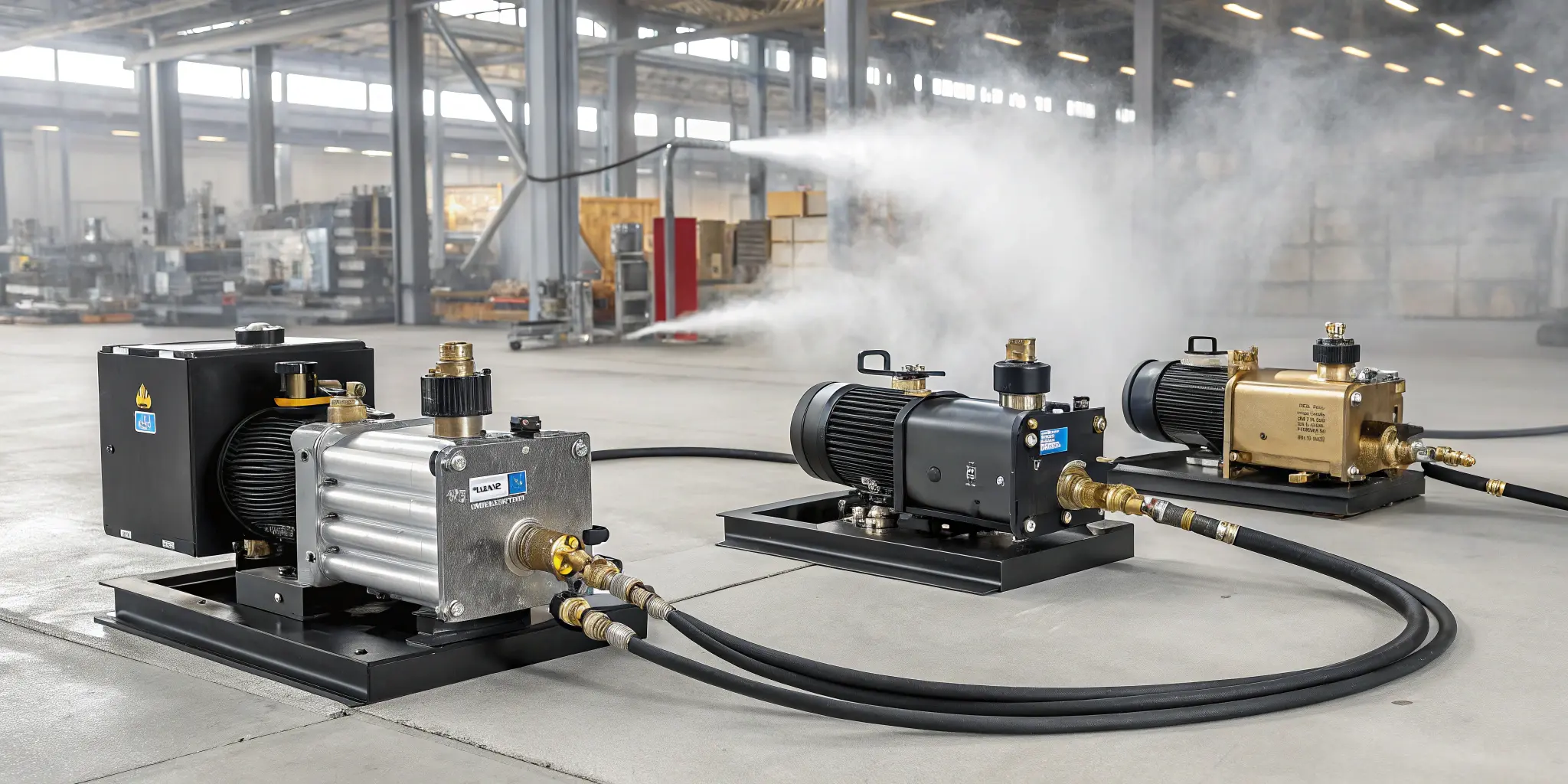

High Pressure Misting Pumps (≥ 30 Bar / 450 Psi)
Best for: Heat intensive manufacturing, foundries, textile humidification, large outdoor cooling.
| Model Range | Pressure (bar) | Flow Rate (l/min) | Drive Type | Key Features |
|---|---|---|---|---|
| CAT 3520C | 70 | 11.4 | Belt | Triplex ceramic plungers, oil bath crankcase |
| AR RK 15.20 | 50 | 20 | Direct | Built in unloader, low rpm 1450 motor |
| HAWK NHD | 60 | 15 | Belt | Brass head, stainless valves, dual seals |
| Riggers R HP40 | 40 | 12 | Direct | Made in India spares, cost efficient |

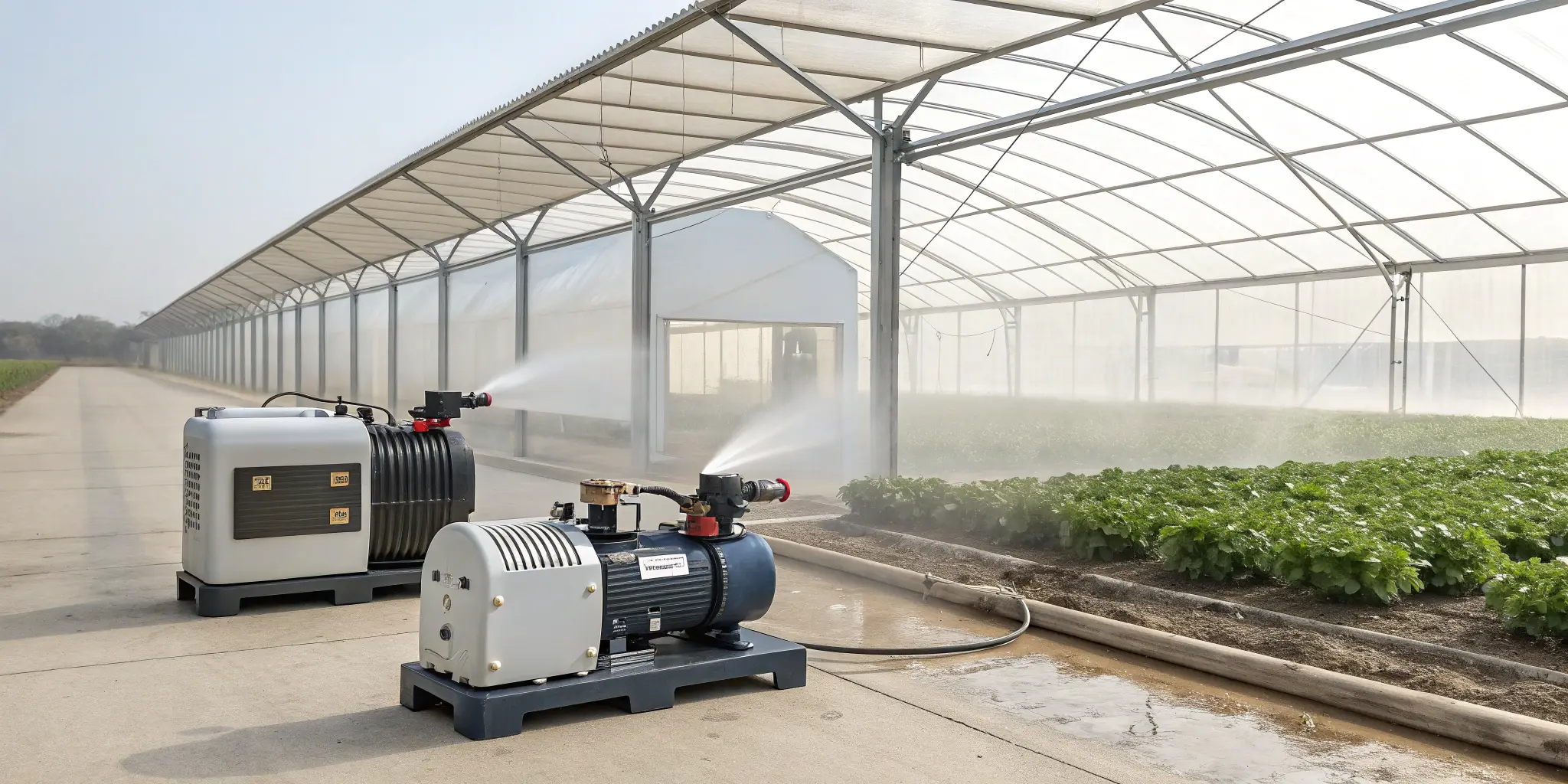

Mid Pressure Misting Pumps (15–30 Bar / 220–450 Psi)
Best for: Poultry sheds, greenhouses, dairy cooling, medium sized outdoor cafés.
| Model Range | Pressure (bar) | Flow Rate (l/min) | Drive Type | Key Features |
|---|---|---|---|---|
| CAT 2SF | 28 | 7.6 | Direct | Compact 1.5 hp motor, thermal relief |
| AR XM | 25 | 10 | Belt | Direct mounting to 3 phase motors |
| Riggers R MP22 | 22 | 8 | Belt | PTFE seals, easy rebuild kit |

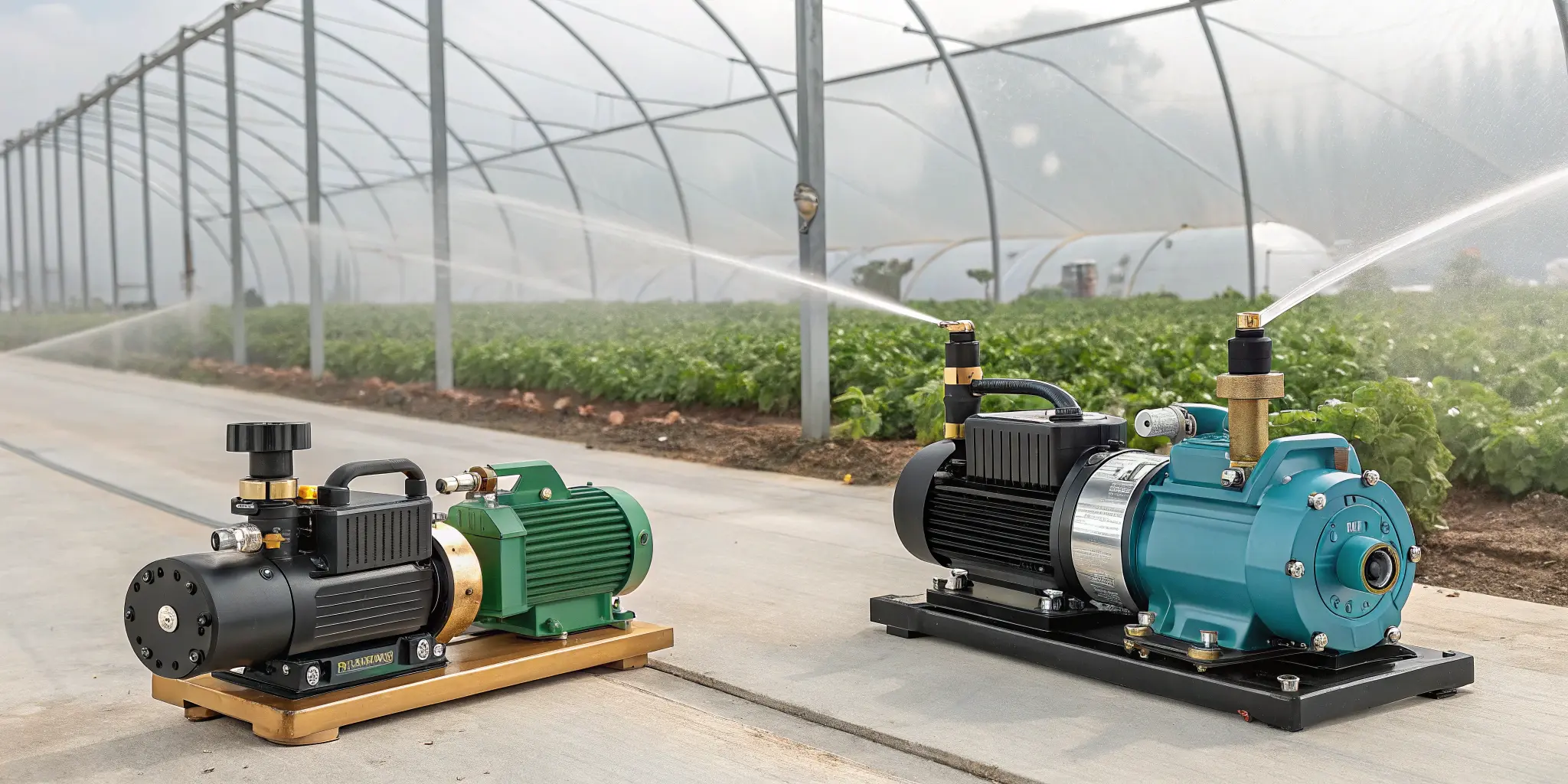

Low Pressure Misting Pumps (≤ 15 Bar / 220 Psi)
Best for: Budget patio cooling, small greenhouses, residential livestock pens.
| Pump Type | Max Pressure | Typical Flow | Particle Size | Pros | Cons |
|---|---|---|---|---|---|
| Mono block Centrifugal | 8 bar | 30 l/min | 70–90 µm | Low cost, simple | Larger droplets, potential wetting |
| Diaphragm Booster | 14 bar | 3 l/min | 50–70 µm | Self priming, runs dry briefly | Pulse dampener required |
Selection Checklist
Calculate total nozzle flow (l/min) + 15 % safety margin.
Match pump curve at desired pressure and flow.
Confirm NEMA/IEC motor frame compatibility.
Factor water quality—use RO or soften > 150 ppm hardness.
Plan Service Intervals
change oil every 500 hours; check seals every 1,000 hours.
Choose with confidence
Choosing the right misting systems
- Define the goal: cooling, humidity, odour control, dust control or pest control.
- Measure the area and note whether it is open, semi-open or enclosed.
- Check water quality — filtration or softening protects the nozzles.
- Choose pressure (low, mid or high) based on how fine the mist must be.
- Plan controls: manual, timer, humidity or temperature based.
Shop
Misting & Cooling Systems you can order online
Prices and stock shown in the shop. For bulk orders or help choosing, ask us.
How we work
From first message to running system
- 01
Tell us the need
Share your requirement, site details and any water report or photos.
- 02
We review and size
We ask the right questions and size the system for your site.
- 03
Clear quotation
You get a quote with scope, specification and timelines.
- 04
Build, install, support
We manufacture, install, commission and stay available for service.
Related solutions
More in Misting & Cooling Systems
Questions, answered
FAQs about Misting System Pump
Still unsure? Ask us directly or call +91 95000 55565.
What is a misting pump and how does it work?
A misting pump pressurises water—up to 70 bar in some models—and pushes it through micron size nozzles to create an ultra fine mist that evaporates instantly, absorbing heat and cooling the surrounding air.
How do I choose between high, mid and low pressure pumps?
Match pump pressure to your application: low pressure units are fine for patios; mid pressure excels in greenhouses; high pressure (30 bar+) delivers flash evaporation critical for industrial cooling and dust control.
Which brands of misting pumps do you supply in India?
We are authorised distributors for **CAT", "Annovi Reverberi", "HAWK" and Riggers pumps—covering every budget and performance tier.
What maintenance does a misting pump require?
Routine tasks include replacing oil every 500 hours, cleaning or swapping inlet filters, and inspecting seals & valves—simple steps that extend service life and prevent downtime.
Can misting pumps be used for industrial cooling?
Yes—our high pressure CAT, AR and HAWK units are engineered for harsh industrial environments, providing rapid evaporative cooling, dust suppression and humidity control across factories and warehouses.
Do you provide installation and after sales support?
Absolutely—our in house technicians handle system design, on site installation and user training. We also stock genuine spare parts to keep your system running smoothly.
What is the difference between low and high-pressure misting?
Low-pressure systems use a pump or mains pressure and produce larger droplets, suited to gardens and simple cooling. High-pressure systems produce much finer mist that evaporates quickly, suited to patios, industry and humidity control.
Will a misting system make the area wet?
A correctly designed high-pressure system flashes off before droplets settle. Low-pressure systems can wet surfaces, so nozzle placement and timing matter.
Do misting nozzles block?
Hard or dirty water can block nozzles. We add filtration and, where needed, softening, and use nozzles that can be cleaned or replaced.
Can misting control dust and odour?
Yes. Fogging systems capture airborne dust at crushers, conveyors and yards, and odour control systems disperse neutralising agents at waste and treatment sites.
