In large-scale Reverse Osmosis (RO) water treatment plants, energy consumption accounts for 35–45% of total operating costs. This is mainly due to the high-pressure pumps required to push saline or brackish water through membranes.
To reduce both energy usage and environmental impact, Energy Recovery Devices (ERDs) are now integral to modern RO systems. These devices capture pressure energy from the RO reject stream and recycle it to reduce feed pump load — dramatically improving efficiency.
In this article, we’ll explore major energy recovery technologies used in industrial RO plants, how they function, and the cost-saving benefits they offer.
1. Energy Consumption in RO Systems
A typical RO setup includes:
- High-pressure feed pumps – to overcome osmotic pressure
- RO membranes – for salt separation
- Concentrate stream – high-pressure brine (reject)
- Permeate stream – purified water
In traditional systems, the energy in the high-pressure reject brine is wasted. However, it still holds up to 70% of input energy, which can be recovered using ERDs — a significant opportunity for cost savings.
2. What Is Energy Recovery?
Energy recovery refers to the process of reclaiming hydraulic energy from the RO reject stream to assist in pressurizing the incoming feedwater.
Benefits include:
- 30–60% lower energy use
- Reduced motor and pump size
- Lower maintenance needs
- Improved system lifespan and ROI
- Reduced carbon emissions
Case Insight: A seawater plant in Oman saved over ₹3.5 crore annually after upgrading to PX-based ERDs.
3. Overview of Energy Recovery Techniques
| Pressure Exchanger (PX) | Transfers pressure directly to feed via rotary chambers | 40–60% | Desalination & high-TDS RO |
| Turbocharger | Converts reject pressure into mechanical energy | 20–40% | Brackish/seawater RO |
| Pelton Wheel | Reject jet spins wheel to drive booster or generator | 15–30% | Small to mid-size RO |
| Centrifugal Turbo Pump | Uses brine’s kinetic energy to assist feed pressure | 25–40% | Large desalination (>10 MLD) |
| Permeate Energy Optimization | Balances pressure in low-pressure lines | 5–10% | Low-pressure industrial systems |

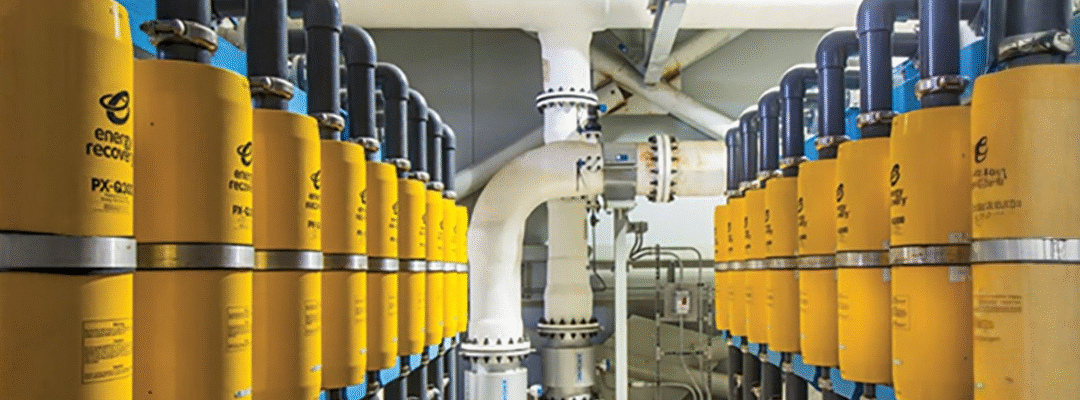

Pressure Exchanger (PX): The Gold Standard
PX is the most efficient ERD used in large-scale RO and desalination systems.
How it Works:
- A rotating cylinder connects high-pressure concentrate to low-pressure feed water via ports.
- It directly transfers pressure with >95% efficiency and minimal energy loss.
Advantages:
- Very compact and corrosion-resistant
- Minimal moving parts = low maintenance
- Reduces power needs by up to 60%
Used In: Large municipal desalination (e.g., Chennai, Saudi SWCC plants), high-TDS RO systems.
Turbocharger / Hydraulic Turbines
Turbochargers capture energy from the reject stream to reduce the work required by the feed pump.
How it Works:
- The concentrate drives a hydraulic turbine linked to the pump shaft.
- Typical efficiency: 70–80%
Advantages:
- Cost-effective for medium-pressure systems
- Simple and rugged design
- Good for retrofitting older plants
Used In: Brackish water and seawater systems where PX isn’t economical.
Pelton Wheel & Turbo Pump
Pelton Wheel:
- A jet of reject water spins a wheel, transferring motion to a pump or generator.
- Suitable for small-scale setups.
- Efficiency: 60–75%
Turbo Pump:
- The brine stream drives an impeller to assist feed flow.
- Common in high-flow desalination plants.
- Helps maintain balanced pressure.
Hybrid Systems: Combining PX + Turbocharger
Some RO facilities use hybrid ERD systems for maximum efficiency.
How It Works:
- PX handles 80–90% of recovery
- Turbochargers handle residual flow balancing
Benefits:
- Up to 98% energy transfer efficiency
- Improved flow stability
- Longer equipment lifespan
4. Automation & Control Integration
Modern RO plants integrate ERDs with PLC/SCADA systems for:
- Real-time pressure and flow monitoring
- Automated valve and pump speed control
- Alerts for efficiency drops or component wear
- Energy consumption dashboards for ESG reporting
Pro Tip: Set SCADA alarms for abnormal pressure differential to catch membrane fouling early.
5. Performance Metrics & Energy Savings
| Seawater RO | 5.5 – 7.0 | 2.0 – 2.5 | 55–65% |
| Brackish Water RO | 2.0 – 3.0 | 1.0 – 1.5 | 40–50% |
| High-TDS Industrial | 4.0 – 6.0 | 2.0 – 3.0 | 35–45% |
Most ERDs deliver ROI in under 2.5–3 years, making them financially as well as environmentally sustainable.
6. Best Practices for Maximum Energy Savings
- Maintain optimal feed pressure (check for scaling/fouling)
- Use VFDs for pump speed optimization
- Regularly clean and calibrate sensors
- Use predictive maintenance data from SCADA
- Combine ERDs with solar or hybrid power where feasible
Real-World Example: 20 MLD Desalination Plant
A seawater RO plant in Gujarat implemented PX-based ERDs with the following results:
- 96% energy recovery efficiency
- 43% total energy cost reduction
- 2.4 kWh/m³ net energy use
- ROI in under 2.5 years
